RF48减速电机详细信息

prevnext

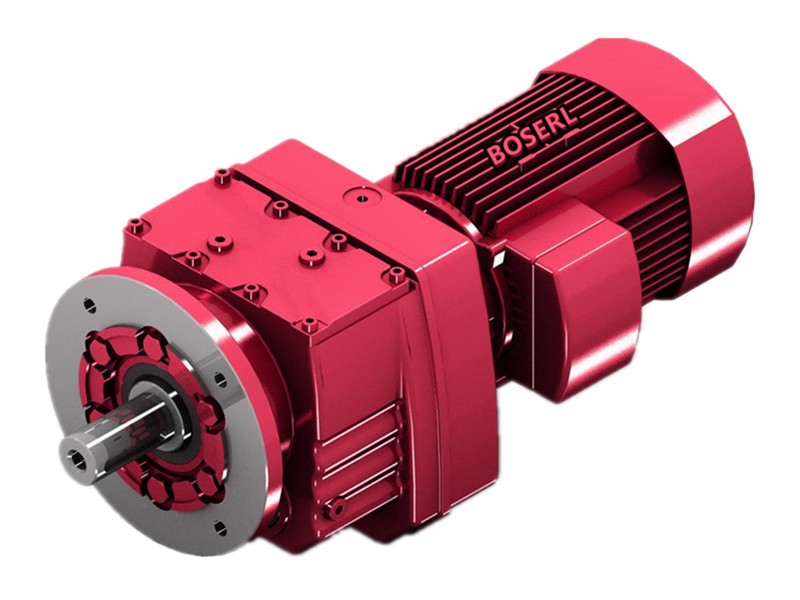

RF48减速电机

订购热线：13360667204
  1. 详细信息

RF48减速电机功率计算公式：齿轮减速马达

电轨车参数：链轮直径110，带动0.4吨，每分钟运行36米

36米÷（0.11链轮直径×3.14）=104.23转每分钟

0.4吨换算成N=4000N

4000×0.055链轮半径×0.3橡胶轮水泥路的摩擦系数=66N.m

通常确保万无一失，我们会把输出扭矩放大两倍66×2=132N.m

电机转数1400÷输出转数104.23=13.43比

132N.m输出扭矩÷13.43比=9.83N.m电机扭矩

9.83N.m电机扭矩换算成功率1.56KW左右

对应的RF48减速机型号参数：

型号：RF48-BEJ1.5KW

减速比：14.56

输出转数：98转每分钟

输出扭矩：146N.m

安全系数：1.8

RF48减速机基座尺寸：输出轴Φ20+键2.5（可定做），高134*宽135*长174（带输出轴）RF系列减速机


RF48斜齿轮硬齿面减速机型号：



RF48减速电机型号参数：同轴斜齿轮减速电机

RF48减速机配0.12KW电机参数

型号减速比功率重量力矩
RF48-Y0.12KW176.880.12KW15.5kg6000N
RF48-Y0.12KW162.940.12KW15.5kg6030N
RF48-Y0.12KW139.990.12KW15.5kg6070N
RF48-Y0.12KW121.870.12KW15.5kg6100N
RF48-Y0.12KW114.170.12KW15.5kg6100N
RF48-Y0.12KW100.860.12KW15.5kg6120N
RF48-Y0.12KW93.680.12KW15.5kg6130N

RF48减速机配0.18KW电机参数

型号减速比功率重量力矩
RF48-Y0.18KW176.88
0.18KW16kg5740N
RF48-Y0.18KW162.940.18KW16kg5810N
RF48-Y0.18KW139.990.18KW16kg5910N
RF48-Y0.18KW121.870.18KW16kg5980N
RF48-Y0.18KW114.170.18KW16kg6000N
RF48-Y0.18KW100.860.18KW16kg6040N
RF48-Y0.18KW93.680.18KW16kg6060N
RF48-Y0.18KW84.90.18KW16kg6080N
RF48-Y0.18KW76.230.18KW16kg6100N

RF48减速机配0.25KW电机参数

型号减速比功率重量力矩
RF48-Y0.25KW176.88
0.25KW20kg5280N
RF48-Y0.25KW162.940.25KW20kg5420N
RF48-Y0.25KW139.990.25KW20kg5630N
RF48-Y0.25KW121.870.25KW20kg5770N
RF48-Y0.25KW114.170.25KW20kg5820N
RF48-Y0.25KW100.860.25KW20kg5900N
RF48-Y0.25KW93.680.25KW20kg5940N
RF48-Y0.25KW84.900.25KW20kg5980N
RF48-Y0.25KW76.230.25KW20kg6020N
RF48-Y0.25KW68.540.25KW20kg6050N
RF48-Y0.25KW64.210.25KW20kg6070N
RF48-Y0.25KW56.730.25KW20kg6090N
RF48-Y0.25KW52.690.25KW20kg6100N
RF48-Y0.25KW47.750.25KW20kg6080N

RF48减速机配0.37KW电机参数

型号减速比功率重量力矩
RF48-Y0.37KW139.990.37KW20.5kg3490N
RF48-Y0.37KW121.870.37KW20.5kg5350N
RF48-Y0.37KW114.170.37KW20.5kg5460N
RF48-Y0.37KW100.860.37KW20.5kg5620N
RF48-Y0.37KW93.680.37KW20.5kg5700N
RF48-Y0.37KW84.90.37KW20.5kg5790N
RF48-Y0.37KW76.230.37KW20.5kg5870N
RF48-Y0.37KW68.540.37KW20.5kg5930N
RF48-Y0.37KW64.210.37KW20.5kg5960N
RF48-Y0.37KW56.730.37KW20.5kg6010N
RF48-Y0.37KW52.690.37KW20.5kg5990N
RF48-Y0.37KW47.750.37KW20.5kg5820N
RF48-Y0.37KW42.870.37KW20.5kg5650N
RF48-Y0.37KW36.930.37KW20.5kg5410N
RF48-Y0.37KW34.730.37KW20.5kg5310N
RF48-Y0.37KW33.790.37KW20.5kg5270N
RF48-Y0.37KW31.120.37KW20.5kg5140N
RF48-Y0.37KW26.740.37KW20.5kg4920N
RF48-Y0.37KW23.280.37KW20.5kg4720N
RF48-Y0.37KW21.810.37KW20.5kg4620N

RF48减速机配0.55KW电机参数

型号减速比功率重量力矩
RF48-Y0.55KW93.68
0.55KW25kg3610N
RF48-Y0.55KW84.900.55KW25kg5290N
RF48-Y0.55KW76.230.55KW25kg5470N
RF48-Y0.55KW68.540.55KW25kg5610N
RF48-Y0.55KW64.210.55KW25kg5690N
RF48-Y0.55KW56.730.55KW25kg5800N
RF48-Y0.55KW52.690.55KW25kg5750N
RF48-Y0.55KW47.750.55KW25kg5610N
RF48-Y0.55KW42.870.55KW25kg5450N
RF48-Y0.55KW36.930.55KW25kg5240N
RF48-Y0.55KW34.730.55KW25kg5160N
RF48-Y0.55KW29.880.55KW25kg4950N
RF48-Y0.55KW26.740.55KW25kg4800N
RF48-Y0.55KW23.280.55KW25kg4610N
RF48-Y0.55KW21.810.55KW25kg4520N

RF48减速机配0.75KW电机参数

型号减速比功率重量力矩
RF48-Y0.75KW68.540.75KW26kg4460N
RF48-Y0.75KW64.210.75KW26kg5300N
RF48-Y0.75KW56.730.75KW26kg5510N
RF48-Y0.75KW52.690.75KW26kg5440N
RF48-Y0.75KW47.750.75KW26kg5320N
RF48-Y0.75KW42.870.75KW26kg5190N
RF48-Y0.75KW36.930.75KW26kg5010N
RF48-Y0.75KW34.730.75KW26kg4930N
RF48-Y0.75KW29.880.75KW26kg4750N
RF48-Y0.75KW26.700.75KW26kg4610N
RF48-Y0.75KW23.590.75KW26kg4460N
RF48-Y0.75KW26.740.75KW26kg4610N
RF48-Y0.75KW23.280.75KW26kg4450N
RF48-Y0.75KW21.810.75KW26kg4370N
RF48-Y0.75KW19.270.75KW26kg4220N
RF48-Y0.75KW17.890.75KW26kg4140N
RF48-Y0.75KW16.220.75KW26kg4020N

RF48减速机配1.1KW电机参数

型号减速比功率重量力矩
RF48-Y1.1KW47.751.1KW30kg3810N
RF48-Y1.1KW42.871.1KW30kg4840N
RF48-Y1.1KW36.931.1KW30kg4700N
RF48-Y1.1KW34.731.1KW30kg4650N
RF48-Y1.1KW29.881.1KW30kg4510N
RF48-Y1.1KW26.701.1KW30kg4400N
RF48-Y1.1KW23.591.1KW30kg4270N
RF48-Y1.1KW23.281.1KW30kg4260N
RF48-Y1.1KW21.811.1KW30kg4190N
RF48-Y1.1KW19.271.1KW30kg4070N
RF48-Y1.1KW17.891.1KW30kg4000N
RF48-Y1.1KW16.221.1KW30kg3900N
RF48-Y1.1KW14.561.1KW30kg3790N
RF48-Y1.1KW12.541.1KW30kg3640N
RF48-Y1.1KW11.791.1KW30kg3580N
RF48-Y1.1KW10.151.1KW30kg3430N
RF48-Y1.1KW9.071.1KW30kg3320N

RF48减速机配1.5KW电机参数

型号减速比功率重量力矩
RF48-Y1.5KW36.931.5KW33kg2750N
RF48-Y1.5KW34.731.5KW33kg4130N
RF48-Y1.5KW29.881.5KW33kg4210N
RF48-Y1.5KW26.701.5KW33kg4130N
RF48-Y1.5KW23.591.5KW33kg4040N
RF48-Y1.5KW23.281.5KW33kg4030N
RF48-Y1.5KW21.811.5KW33kg3980N
RF48-Y1.5KW19.271.5KW33kg3870N
RF48-Y1.5KW17.891.5KW33kg3810N
RF48-Y1.5KW16.221.5KW33kg3730N
RF48-Y1.5KW14.561.5KW33kg3640N
RF48-Y1.5KW12.541.5KW33kg3510N
RF48-Y1.5KW11.791.5KW33kg3460N
RF48-Y1.5KW10.151.5KW33kg3330N
RF48-Y1.5KW9.071.5KW33kg3230N
RF48-Y1.5KW8.011.5KW33kg3120N
RF48-Y1.5KW7.761.5KW33kg3050N
RF48-Y1.5KW6.961.5KW33kg2970N
RF48-Y1.5KW6.001.5KW33kg2850N
RF48-Y1.5KW5.641.5KW33kg2800N
RF48-Y1.5KW4.851.5KW33kg2690N
RF48-Y1.5KW4.341.5KW33kg2600N
RF48-Y1.5KW3.831.5KW33kg2510N

RF48减速机配2.2KW电机参数

型号减速比功率重量力矩
RF48-Y2.2KW19.27
2.2KW42Kg3550N
RF48-Y2.2KW16.222.2KW42Kg3460N
RF48-Y2.2KW14.562.2KW42Kg3390N
RF48-Y2.2KW12.542.2KW42Kg3300N
RF48-Y2.2KW11.792.2KW42Kg3260N
RF48-Y2.2KW10.152.2KW42Kg3160N
RF48-Y2.2KW9.072.2KW42Kg3080N
RF48-Y2.2KW8.012.2KW42Kg2990N
RF48-Y2.2KW7.762.2KW42Kg2900N
RF48-Y2.2KW6.962.2KW42Kg2830N
RF48-Y2.2KW6.002.2KW42Kg2730N
RF48-Y2.2KW5.642.2KW42Kg2690N
RF48-Y2.2KW4.852.2KW42Kg2590N
RF48-Y2.2KW4.342.2KW42Kg2520N
RF48-Y2.2KW3.832.2KW42Kg2440N

RF48减速机配3KW电机参数

型号减速比功率重量力矩
RF48-Y3KW16.223KW45Kg2200N
RF48-Y3KW14.563KW45Kg2650N
RF48-Y3KW12.543KW45Kg3040N
RF48-Y3KW11.793KW45Kg3020N
RF48-Y3KW10.153KW45Kg2950N
RF48-Y3KW9.073KW45Kg2890N
RF48-Y3KW8.013KW45Kg2820N
RF48-Y3KW7.763KW45Kg2720N
RF48-Y3KW6.963KW45Kg2660N
RF48-Y3KW6.003KW45Kg2590N
RF48-Y3KW5.643KW45Kg2560N
RF48-Y3KW4.853KW45Kg2470N
RF48-Y3KW4.343KW45Kg2410N
RF48-Y3KW3.833KW45Kg2340N

RF48减速机配4KW电机参数

型号减速比功率重量力矩
RF48-Y4KW10.15
4KW56kg2060N
RF48-Y4KW9.074KW56kg2440N
RF48-Y4KW8.014KW56kg2630N
RF48-Y4KW6.964KW56kg2470N
RF48-Y4KW6.004KW56kg2420N
RF48-Y4KW5.644KW56kg2400N
RF48-Y4KW4.854KW56kg2340N
RF48-Y4KW4.344KW56kg2290N
RF48-Y4KW3.834KW56kg2230N

RF48减速机配5.5KW电机参数

型号减速比功率重量力矩
RF48-Y5.5KW4.85
5.5KW70Kg1910N
RF48-Y5.5KW4.345.5KW70Kg2110N
RF48-Y5.5KW3.835.5KW70Kg2070N

RF48减速电机生产工厂展示：看厂请联系微信13827261050，获取位置，需提前一天预约

推荐类似型号：R48减速机

关键词:GRF系列减速机立式一体式_直线输出减速机配电机_RF系列减速器_直连电机减速机_直连减速机_直连减速器_直联减速机_RF系列减速机_RF型减速机_RF齿轮减速马达

RF系列减速机型号：RF18减速机,RF28减速机,RF38减速机,RF48减速机,RF58减速机,RF68减速机,RF78减速机,RF88减速机,RF98减速机,RF108减速机,RF138减速机,RF148减速机,RF168减速机

RF系列斜齿轮减速机可配变频电机，刹车电机，防爆电机，伺服电机，交流电机，直流电机，三相电机，单相电机 0.12KW-132KW之间

如需工程师帮选型，请加微信13827261050，留言告知工程师参数要求
